ROS Topic Analyzer

TUI for live topic monitoring in ROS systems

Overview

ROS is an amazing piece of software for robtics development, but in a system like the AVC vehicle, it is sometimes hard to keep track of every single topic that we are wanting to monitor. Running rostopic hz \topic every time we want to double check a publishing rate, then rostopic info \topic, then finally rostopic echo \topic becomes quite tedious when you have a system with 6 radars, 2 lidars, 6 cameras, and multiple other measurements coming through at any given time.

To fix this issue, and facilitate system monitoring at scale, I created a TUI to monitor specific aspects of our ROS system, called the ROS Topic Analyzer My requirements for the system were:

  • User configuration via a JSON schema
  • 3 separate displays in the UI
    • Config view that displays JSON validation feedback
    • List view with all topics and rate information
    • Focus view with more detailed topic information, including publishers, subscribers, and message data
  • Keybinds and mouse input over SSH

In my development, I chose to use asciimatics as my TUI library of choice, sqlite3 for management of topic information, and of course used the rospy and rostopic APIs for querying information from master.

Implementation

JSON Schema

At the root of the system is configuring a JSON file for the topics we want to monitor. The JSON schema I designed is quite simple:

{
  "topics": [
    {
      "display_name": "Name", //a plaintext name for the topic
      "handle": "/namespace/namespace/topic", //the actual topic address
      "hz_target": "100.0" //a float for a target hz rate
    }
  ]
}

All that a user needs to specify is a plaintext name for the topic for readability, the topic itself, and the target rate for the topic, and the ROS backend will handle the rest.

Config Selection

The next part of the system the user encounters is the topic selection screen.

Config Selection

The topic selection screen shows all the configuration files placed in the cfg/ directory in the package. When you attempt to select a configuration file, it will automatically:

  • Validate structure of the JSON file
  • Validate the topic handle and whether or not it is published
  • Validate the target rate given

If there are issues with any of the above, you will see an exception printed in the JSON Configuration Errors box.

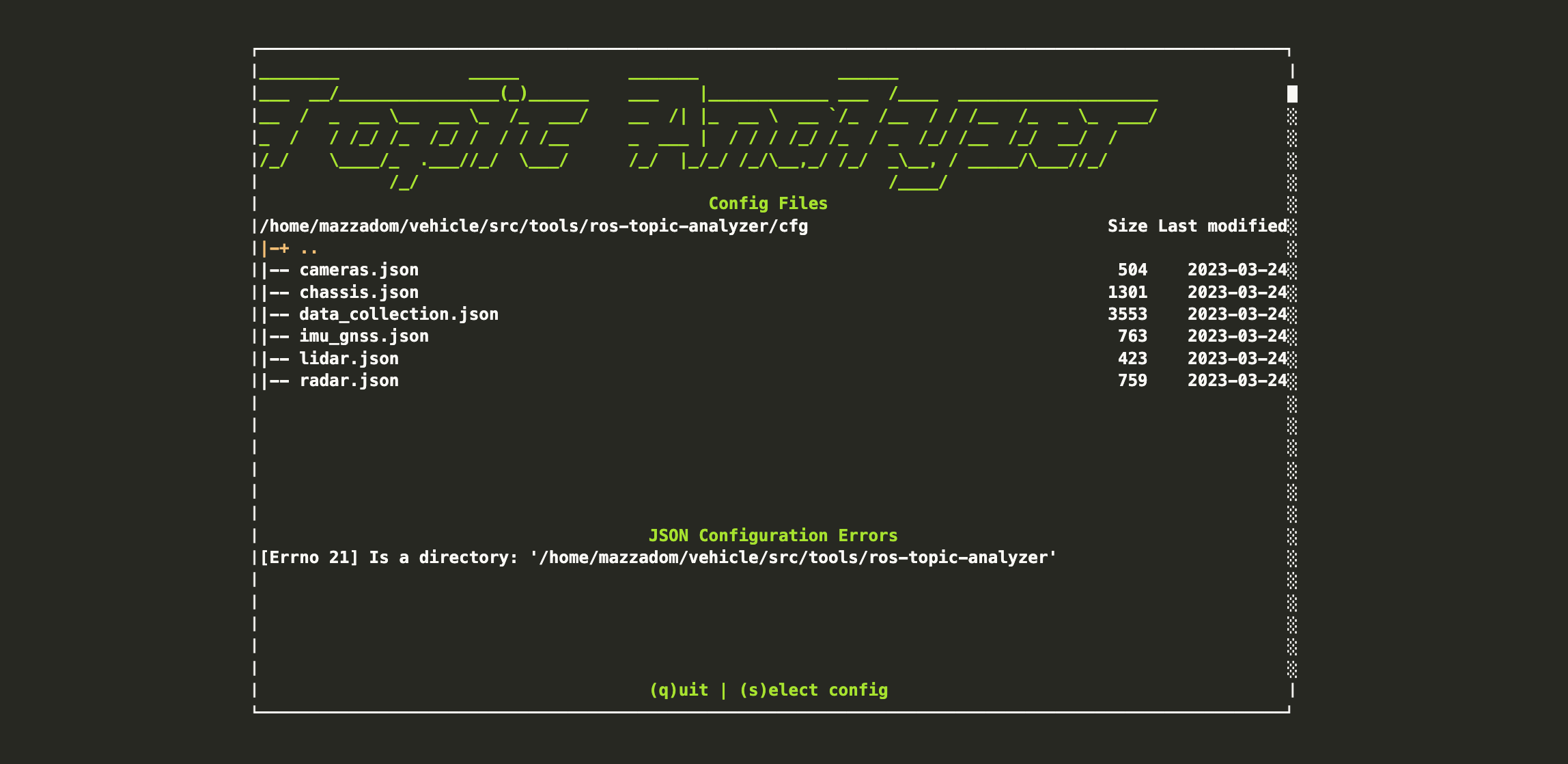

For example, if you attempt to choose the ../ directory:

Invalid File Selection

Another example, if one of the topics is not published yet:

Unpublished Topic

ROS Backend and Database

In my initial development, I noticed that attempting to get the ROS thread and a TUI library to play nice with each other in a single thread was a fools errand. To work around this, I spawned a separate thread for the ROS node handling queries to the and entering database information. This ROS node handled the requesting of all information from the ROS system for both list views and focus views.

The way we get information from ROS is simple:

  1. Spawn a thread to run the ROS node and pass in the config and the database model:

    def run_node(config, model):
    node = Node(config, model)
    try:
        node.run()
    except rospy.ROSInterruptException:
        sys.exit(0)

  2. Parse the JSON, creating a database entry for each topic and storing ROSTopicHz objects and rate subscribers:

    # get the message type for the topic
(msg_object, _, _) = rostopic.get_topic_class(topic["handle"])

# creates a ROSTopicHZ class to monitor topic HZ for
# the last 100 messages
monitor = rostopic.ROSTopicHz(100)

# subscribes to topic to monitor hz
hz_subscriber = rospy.Subscriber(
    topic["handle"],
    msg_object,
    monitor.callback_hz,
)

# create a dictionary to be added to database and adds
topic = {
    "title": topic["display_name"],
    "handle": topic["handle"],
    "rate": "0.0",
    "target": topic["hz_target"],
    "type": msg_object._type,
}
self._model.add(topic)

# add monitor to the list
self.monitors.append(monitor)

# add subscriber to the list
self.hz_subscribers.append(hz_subscriber)

  3. Create a timer and callback to automatically refresh the topic information at a fixed rate of 4 hz. This timer callback determines whether or not we are looking at the list view or the focus view based on the database wrapper. If the view switches to a focus view, it sets current_id to the index of the topic we are interested in. If we go back to list view, then current_id = None.

    # callback to update database values 4 times a second
def timer_callback(self, timer):

    # if there is no currently selected topic,
    # just update the hz for every topic
    if self._model.current_id is None:
        for index in range(self.length):
            hz = self.get_hz(index)
            self._model.update_topic_hz(f"{hz:.2f}", index + 1)

    # if there is a currently selected topic, get its message and its
    # publishers/subscribers as well as only updating the topic's hz
    if self._model.current_id is not None:
        message = ""
        publishers = ""
        subscribers = ""
        try:
            # get hz for topic
            hz = self.get_hz(self._model.current_id - 1)

            # update the hz
            self._model.update_topic_hz(f"{hz:.2f}", self._model.current_id - 1)

            # gets current topic from model
            topic = self._model.get_current_topic()

            # waits for a singular message
            message = rospy.wait_for_message(
                topic[2],
                self.hz_subscribers[self._model.current_id - 1].data_class,
                timeout=5,
            )

            # makes sure the messages wrap correctly
            message = "\n".join(
                [
                    "\n".join(
                        textwrap.wrap(
                            line,
                            70,
                            break_long_words=False,
                            replace_whitespace=False,
                        )
                    )
                    for line in str(message).splitlines()
                    if line.strip() != ""
                ]
            )

            # gets pub and subs for topic
            publishers, subscribers = self.get_pubsubs(topic[2])

        # catch errors related to topic not being up
        except Exception:
            message = "TOPIC NOT ONLINE\n"
            publishers = "TOPIC NOT ONLINE\n"
            subscribers = "TOPIC NOT ONLINE\n"

        # update database
        self._model.update_topic_info(
            message,
            publishers,
            subscribers,
        )

This database is operated in a thread safe manner as the ROS node thread is the only thread that is modifying the database at any given time, and the TUI thread is responsible for updating the current_id of the database wrapper.

In terms of database implementation, its a simple wrapper for sqlite3 queries.

List View

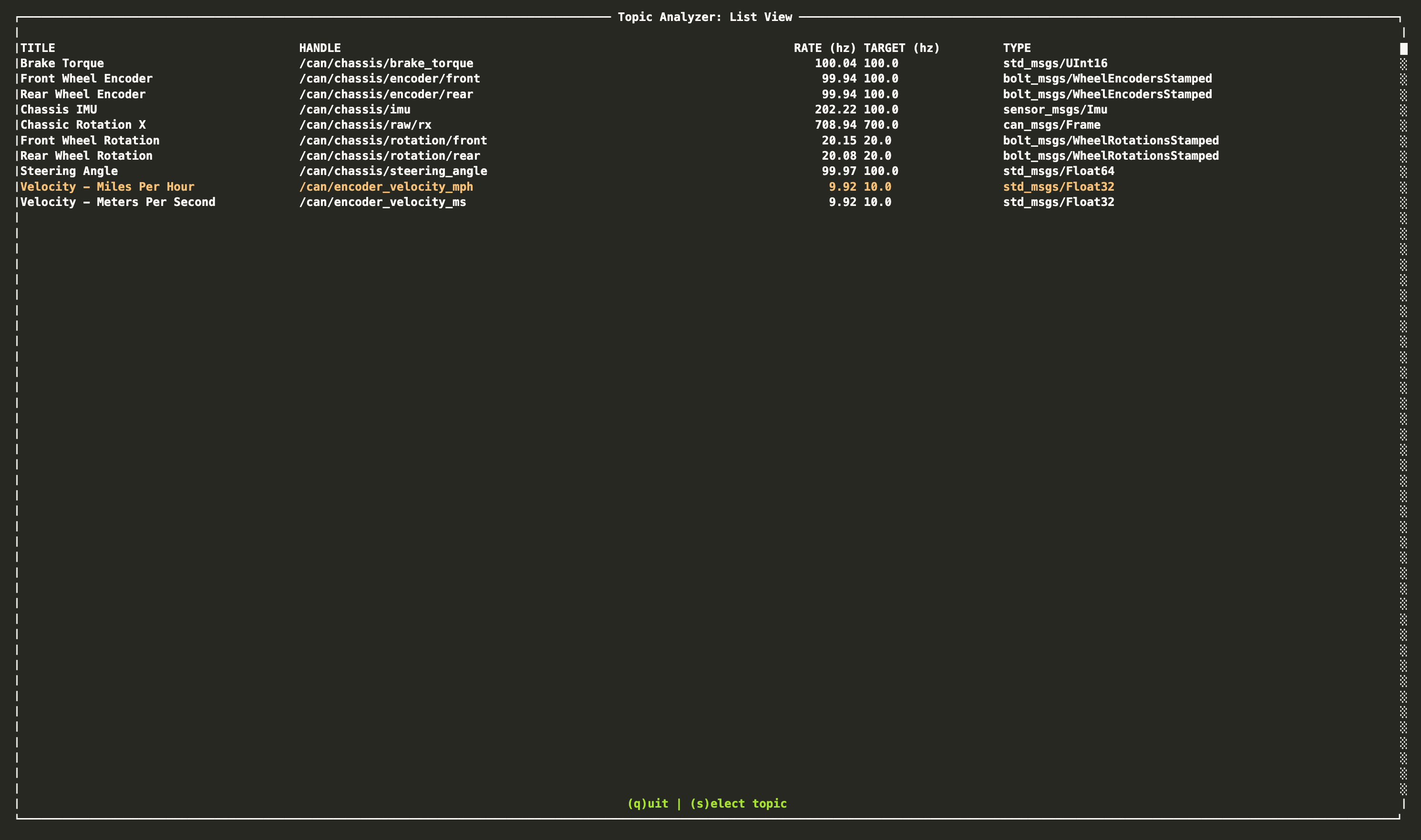

The list view is the view you will encounter after selecting a valid configuration. The view looks like this:

List View

The view shows the following pieces of information:

  • TITLE: A plaintext name for the topic
  • HANDLE: The handle for the topic
  • RATE (hz): The current rate for the topic
  • TARGET (hz): The target rate for the topic
  • TYPE: The ROS message type of the topic

This view is updated at 4 hz. For more implementation details, view the source

Focus View

The focus view is shown when you select a topic from the list view. You can see all of the information displayed in the list view, as well as the topic’s publishers, subscribers, and message contents.

List View

This view is updated at 2 hz. For more implementation details, view the source Additionally, with topics containing a large amount information, such as image topics, pointclouds, and radar objects, the data will take longer to display initially due to reformatting the message into a readable dilineated string.

Final Thoughts

This project was a ton of fun! As someone who mostly develops in C++ or Python in the backend, it was a unique challenge to build a tool that is meant to be more user facing. The process of using asciimatics and sqlite3 was honestly a breeze, and I definitely think any other terminal tools I develop in the future will make use of them. If you have any questions, comments, or improvements, definitely submit an issue on github. Thanks for stopping by!
